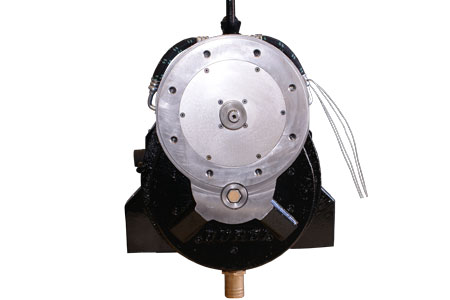

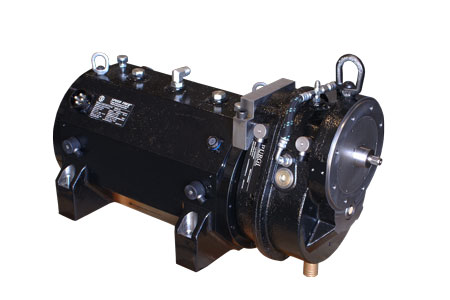

Integrated Motor Gearbox Assembly



Motor-Gearbox

Motor-GearboxMotor-GearboxMotor-Gearbox

Max RPM: 36,000 RPM
Max Torque: 82 FT‐LBS
Max Power: 177 HP
Gear Ratio: 2.2:1

This integrated motor gearbox assembly was purchased by a company building seal test stands. The motor is an oil cooled 28S frame size from our Speed Freq liquid cooled AC motor product line, it is designed and manufactured by Burgi. Additionally Burgi Engineers designed the gearbox, it is also oil cooled, and the gearbox is mounted directly to the motor’s c-face register. This is a compact way to achieve the higher speeds from a gearbox, with the added benefit of avoiding the burden of aligning separate motor and gearbox components.
